Facade constructive section and structure details of building dwg file

Facade constructive section and structure details of building dwg file

File description

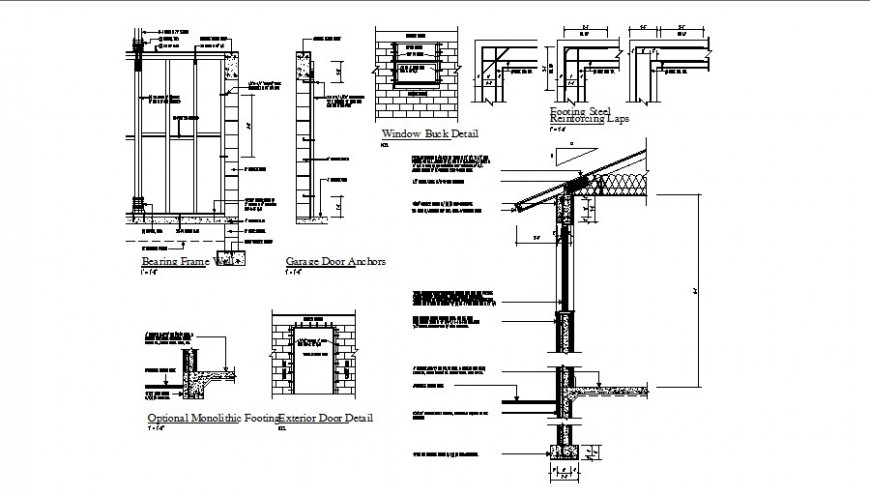

Facade constructive section and structure details of building that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of strcuture details.
