All floors staircase section and structure details of apartment building dwg file

File description

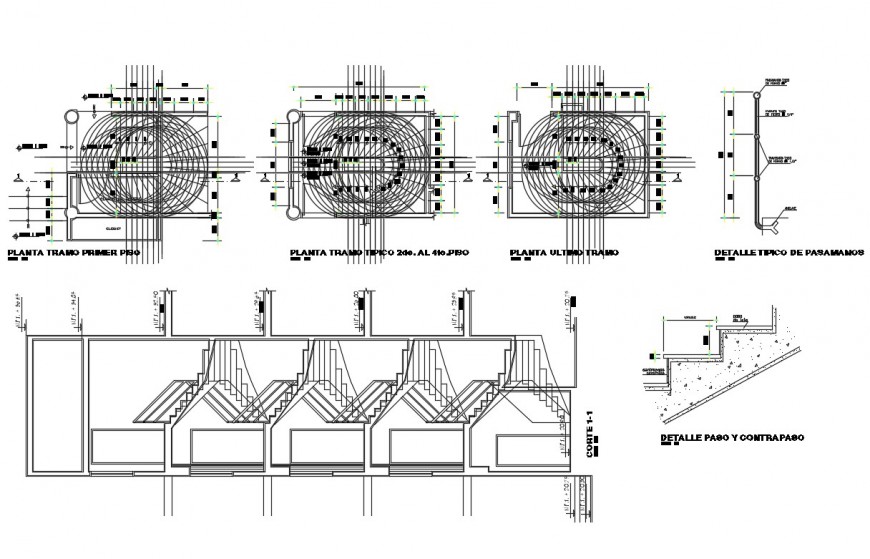

All floors staircase section and structure details of apartment building that includes a detailed view of house front sectional view with main stairways, stairways sectional view of drawing room to floor, terrace stairways with vest scenario, ceramic floor, horizontal section, tapizon novoflor corrugated beige, ceramic floor clime color Blanco, foot print ceramic, novice glue, steps details, supportive wooden railing installation, base floor concrete plan, wall construction dimensions view, supportive pillar view and much more of staircase details.
